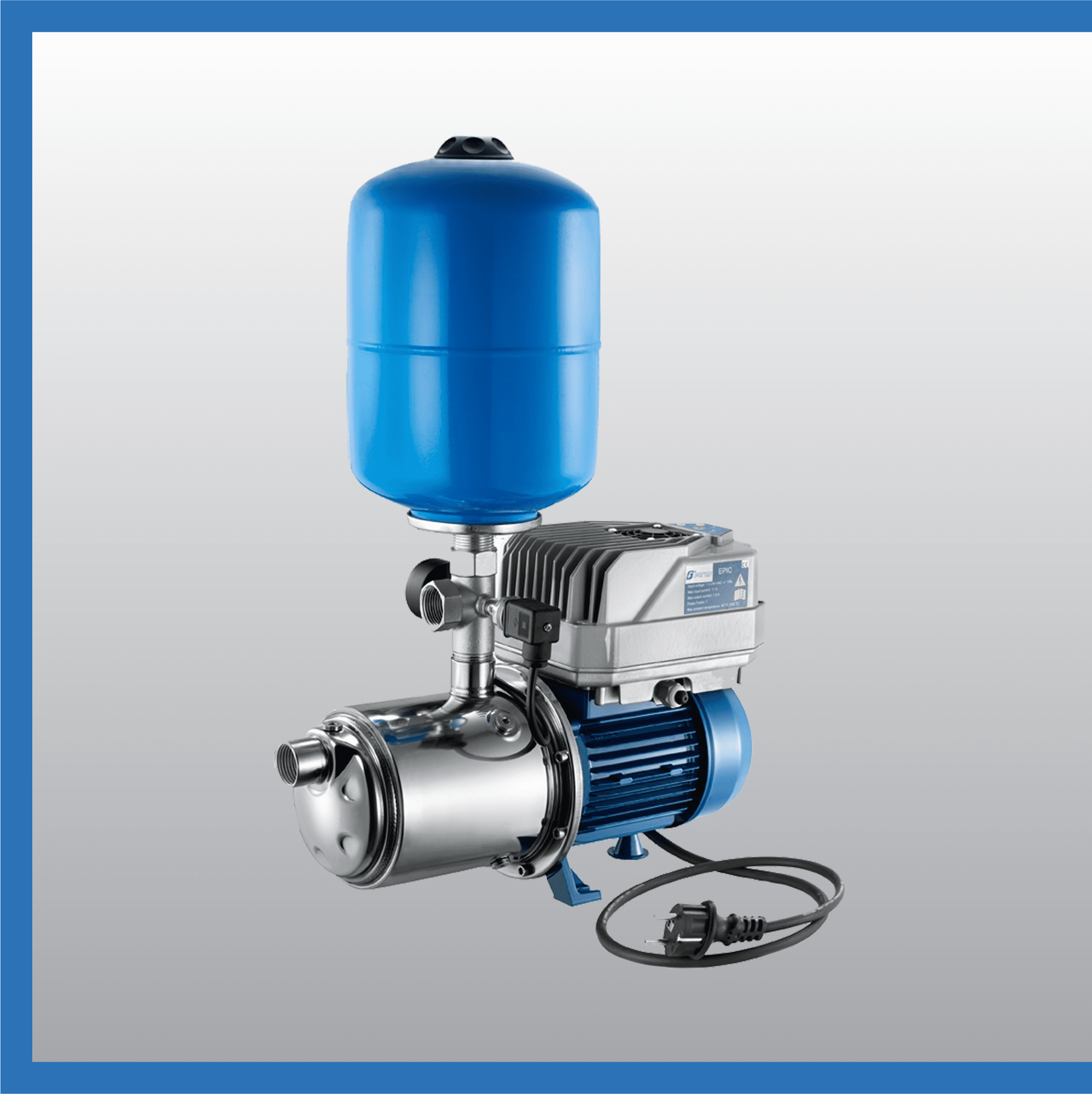

HM3-5-E1 Horizontal Multistage Pump with E1 VSD Controller and 8 Litre Pressure Tank
HM3-5-E1
$2,695.00
HM3-5-E1 – Variable Speed Stainless Steel Multistage Pump with E1 VSD Controller and 8 Litre Pressure Tank
The HM Series are variable speed drive stainless steel multistage horizontal pumps. Designed for pumping clean non-loaded fluids for pressurising systems; irrigation, drinking, glycol water, water treatment, heating and air conditioning; washing systems. Considered the pinnacle in quality and innovation they are efficient to run.
Construction:
- Pump Body: Stainless Steel AISI304
- Impeller: Stainless Steel AISI304
- Mechanical Seal: Ceramic / Graphite
- Max Liquid Temprature: +/- 110c
- Max Operating Pressure: 8.5 bar
- Motor: 2 Pole Induction
- w/ Thermal Protection
- Insulation: Class F
- Protection: IP44

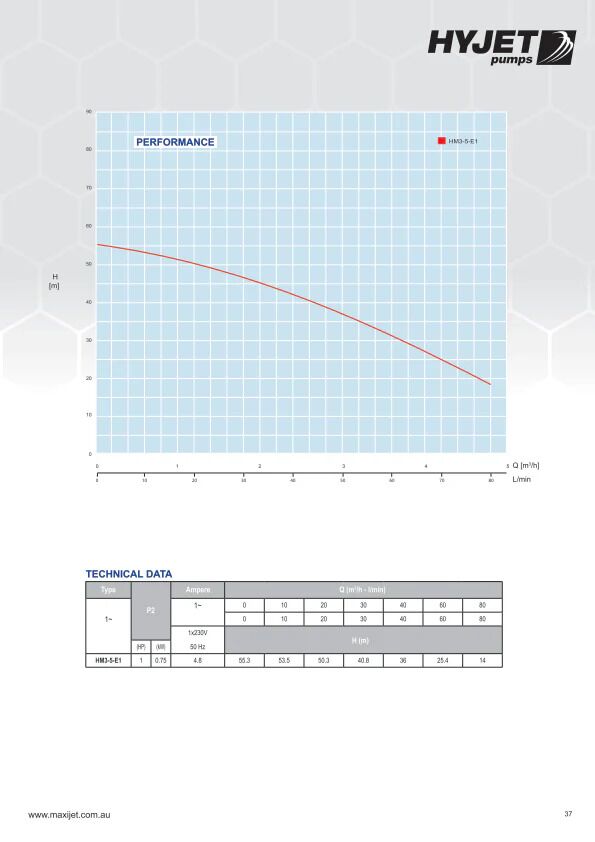

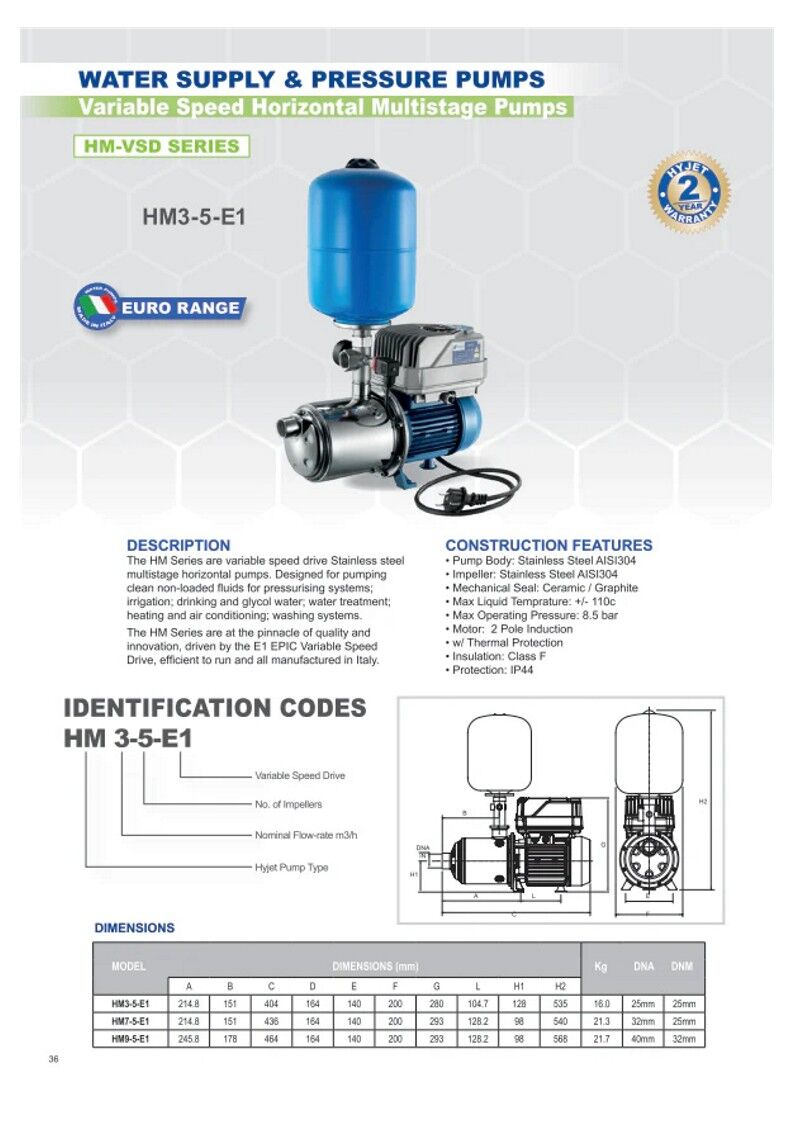

Please see below for Specifications: Product Info HM Series Pumps spec sheet
CONTACT US FOR MORE DETAILS
Specifications
| Pump Model | HM3-5-E1 | HM7-5-E1 | HM9-5-E1 |
| Power (kW) | 0.75 | 1.85 | 1.85 |
| HP | 1 | 2.5 | 2.5 |
| MAX FLOW L/Min. | 80 | 180 | 240 |
| MAX HEAD (m) | 55 | 60 | 60 |
| AMPS | 4.8 | 10.9 | 10.9 |
| VOLTAGE | 230 | 230 | 230 |
| CONNECTION Outlet (mm) | 25 | 25 | 30 |
| Inlet | 25 | 32 | 40 |
| PHASE | Single | Single | Single |
| Weight | 16 kg |
|---|---|
| Dimensions | 404 × 140 × 535 mm |
