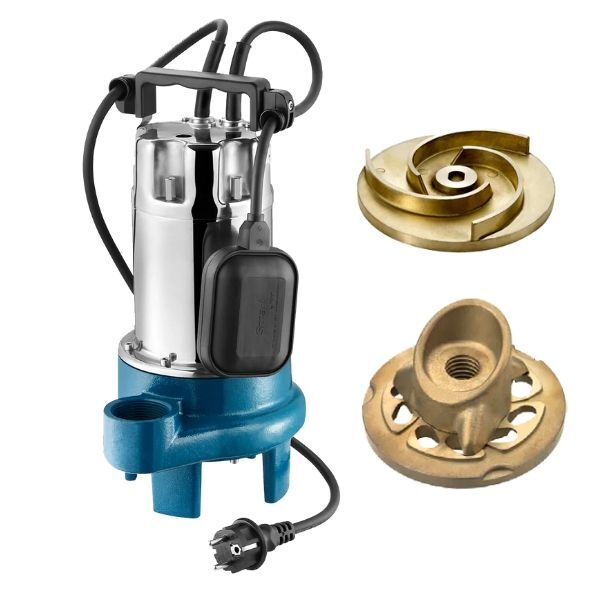

DTR Series Submersible Grider Pump – DTR101-1A

Sewerage Grinder Submersible Pump – 3 Options to choose from.

OPTION 1

• Product Code: DTR101-1A (Automatic, includes float switch)
• Description: 1200 Watt 240V 220 L/min 19m Head Sewage Grinder Submersible Pump – Made in Italy

OPTION 2

• Product Code: DTR101-1 (Manual, no float switch)
• Description: 1200 Watt 240V 220 L/min 19m Head Sewage Grinder Submersible Pump with NO FLOAT SWITCH – Made in Italy

OPTION 3

• Product Code: DTR101-3 (3-phase, manual)
• Description: 1200 Watt 415V 3PH 220 L/min 19m Head Sewage Grinder Submersible Pump – Made in Italy

Specifications:

• Pump body: Cast iron

• Impeller: Brass

• Mechanical seal: Double seal with oil barrier: silicon carbide on pump side, sealing ring on motor side

• Motor shaft: Stainless steel AISI 430

• Depth of immersion: Max 5m

• Grinder: Treated stainless steel

• Liquid temperature: 0-40 °C

• Cable: H07 RN8F, 10m

• A: Float switch

• 2 poles induction motor:

3-400V – 50 Hz

1-230V – 50 Hz

(with thermal overload protection)

• Insulation class: F

• Protection degree: IPX8

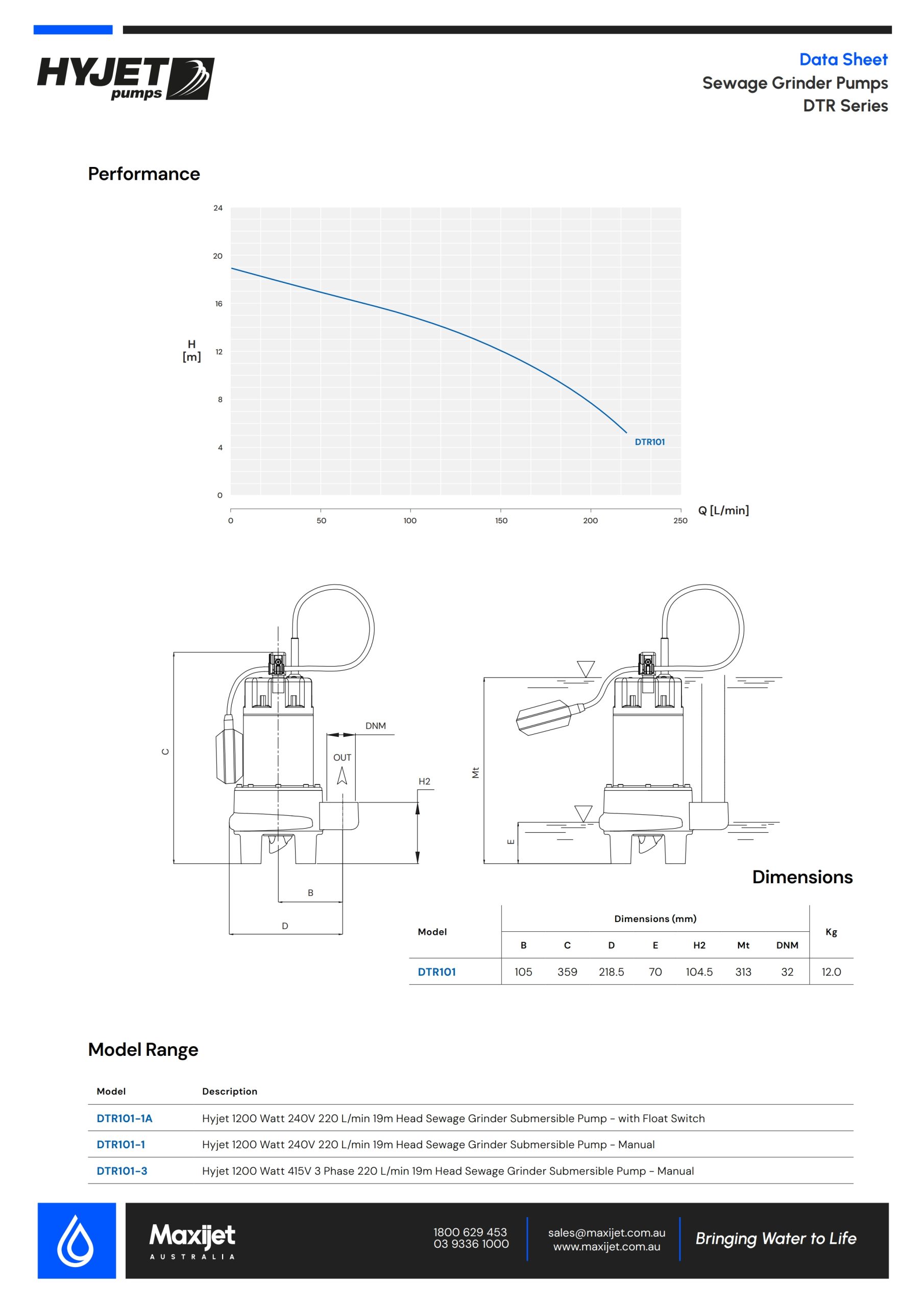

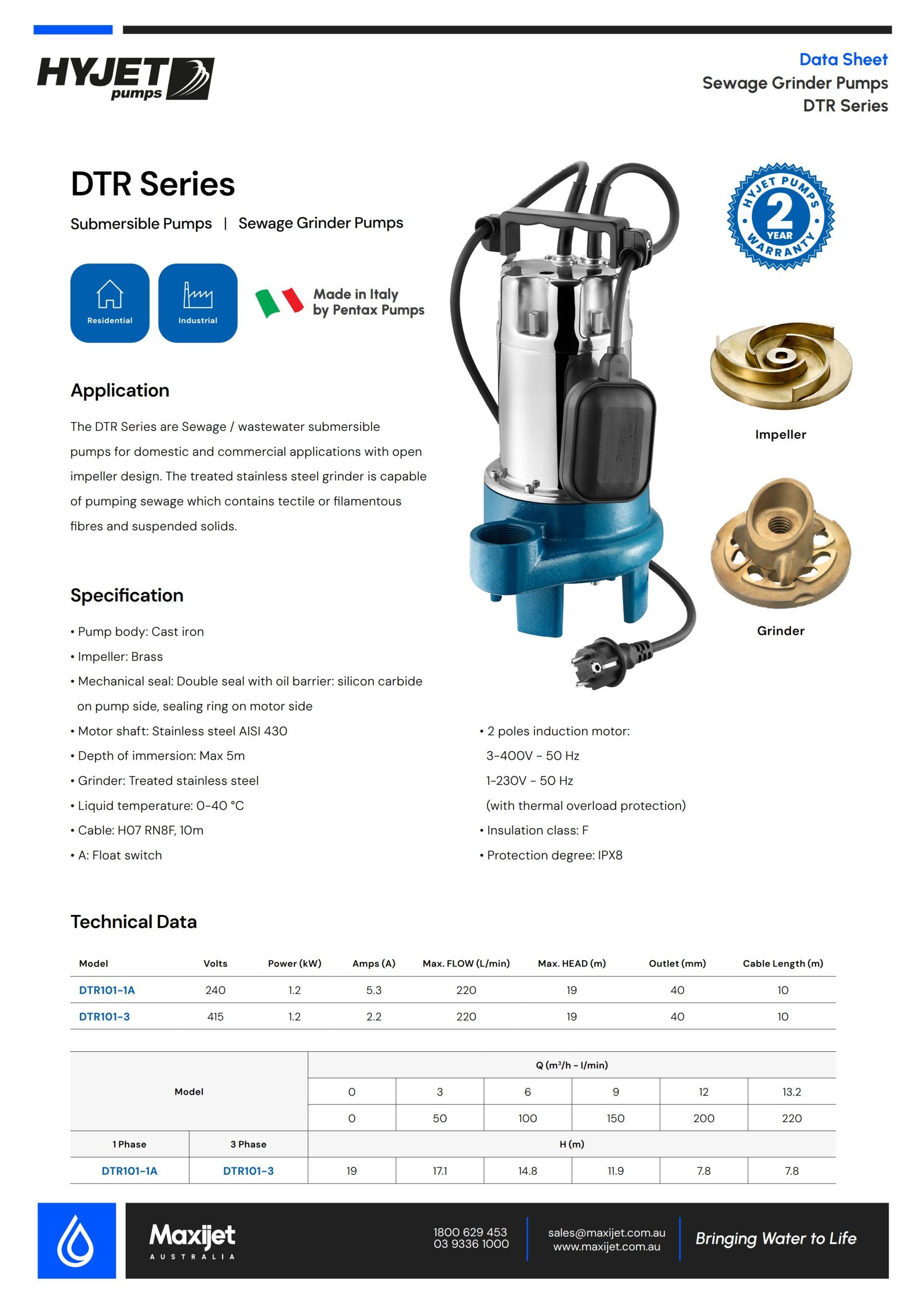

Please see more information below:
