Submersible – RM5096-4
RM5096-4 submersible
$975.00
RM5096-4 – Submersible Pump

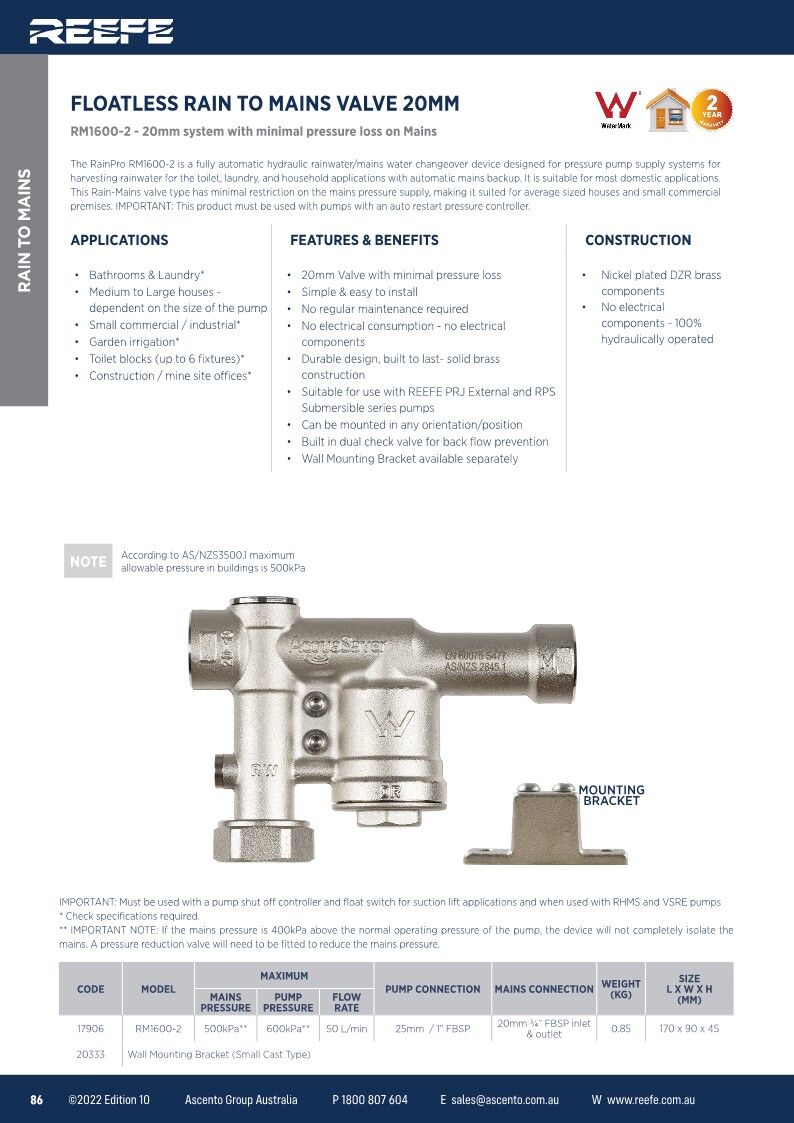

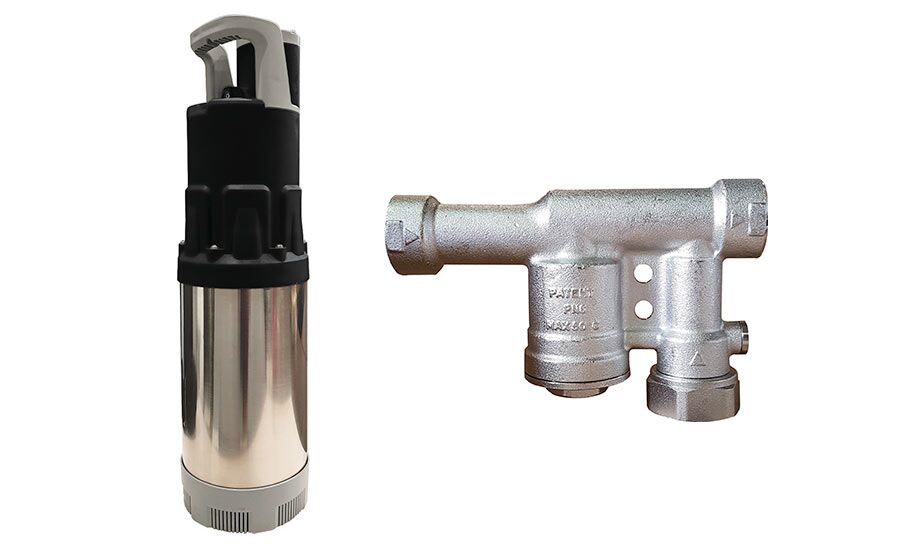

Combines the Reefe RSMP35 pump with the RM1600 Rain to Mains Changeover.
With an integral pressure controller, the RSMP range of submersible multistage pressure pumps offer many benefits over standard submersible pumps with separate pressure controllers, including quicker install time with less parts, and increased reliability.
This pump comes with a Mains/ Rain Changeover Device to switch from rains water to mains when tank water is low. This devise will supply continuous water (tank or mains) for household demands such as toilet cistern filling, washing machines, garden watering and car washing. Being submersible, pump noise is kept to a minimum.

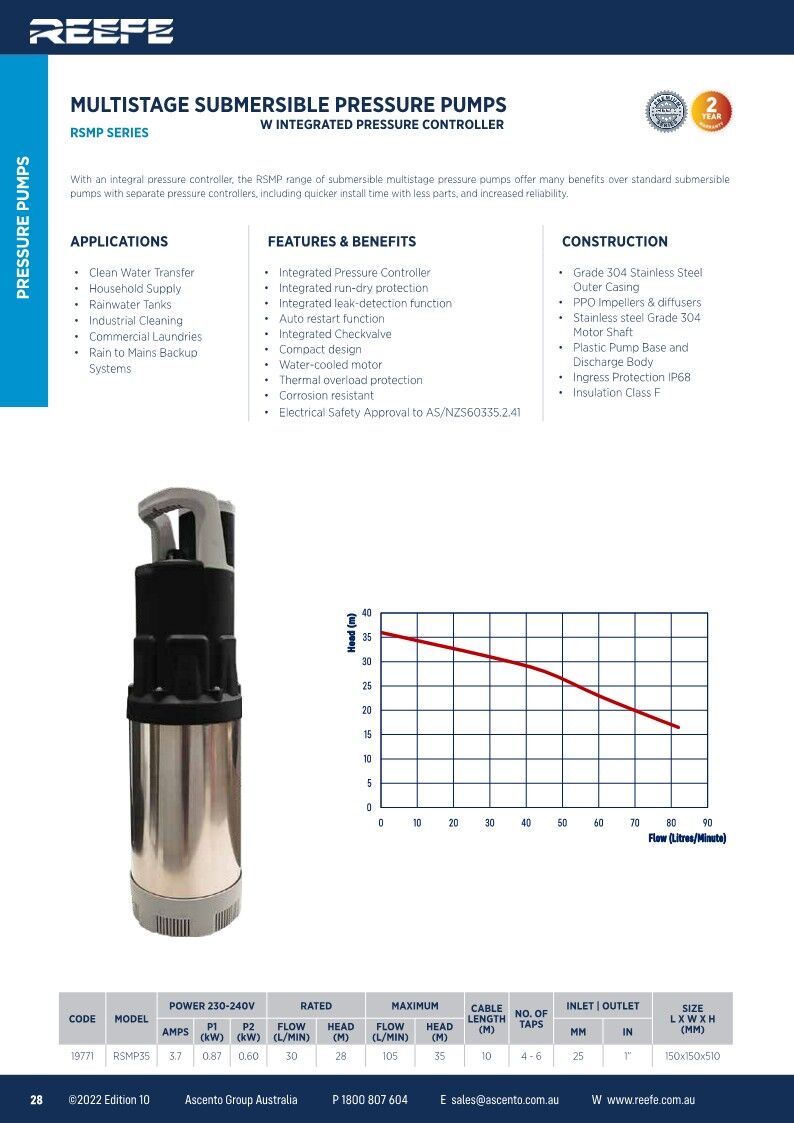

Please see below for pump Specifications:
CONTACT US FOR MORE DETAILS
Specifications
| CODE | 19771 | MODEL | RSMP35 |
| AMPS | 3.7 | WATTS | 600 |
| RATED FLOW | 30 L/min | RATED HEAD | 28m |
| MAXIMUM FLOW | 105 L/min | MAXIMUM HEAD | 35m |
| NO. OF TAPS | 4 – 6 | OUTLET | 25mm |
| CABLE LENGTH | 10m | SIZE (mm) L x W x H | 150x15x150 |
Features
Integrated Pressure Controller
Integrated run-dry protection
Integrated leak-detection function
Auto restart function
Integrated Checkvalve
Compact design
Water-cooled motor
Thermal overload protection
Corrosion resistant
Electrical Safety Approval to AS/NZS60335.2.41
Construction
Grade 304 Stainless Steel Outer Casing
PPO Impellers & diffusers
Stainless steel Grade 304
Motor Shaft
Plastic Pump Base and
Discharge Body
Ingress Protection IP68
Insulation Class F
Application
Clean Water Transfer
Household Supply
Rainwater Tanks
Industrial Cleaning
Commercial Laundries
Rain to Mains Backup Systems
See instruction Manual RSMP35-Series-Instruction-Manual ascento
| Weight | 18 kg |
|---|---|
| Dimensions | 150 × 150 × 565 mm |
