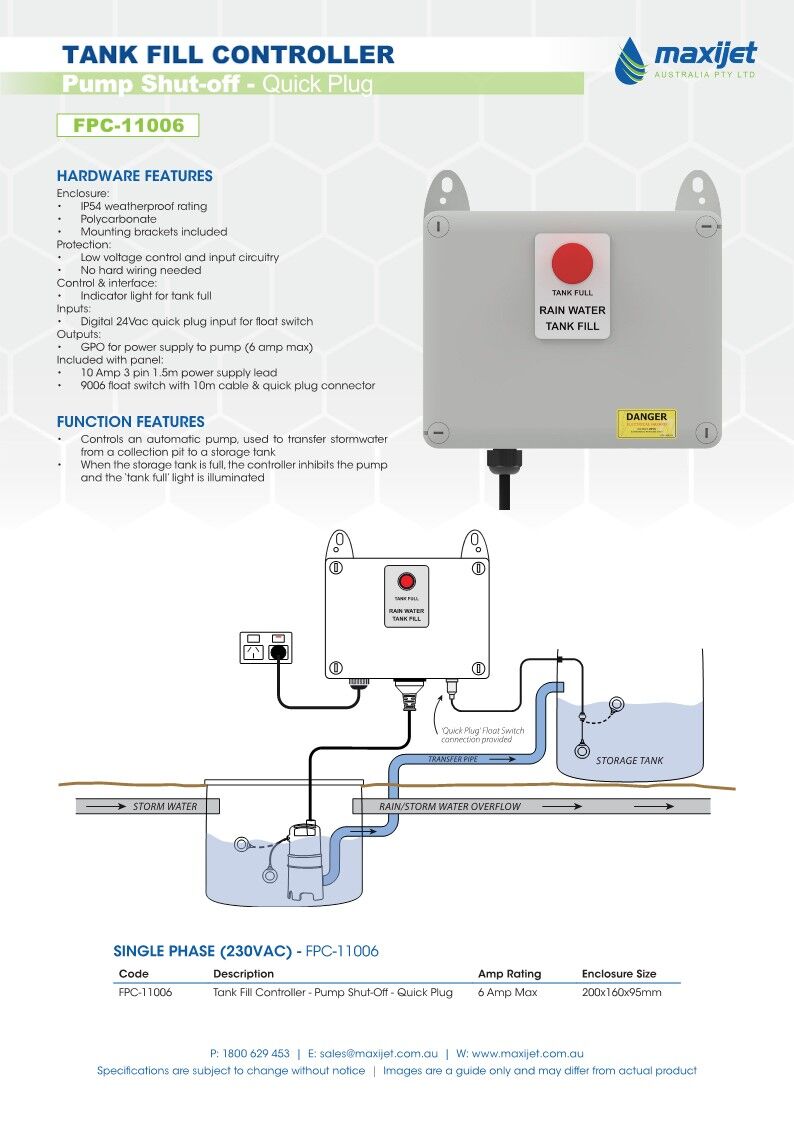

HARDWARE FEATURES

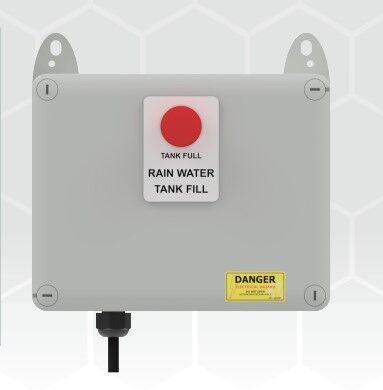

Enclosure:

•      IP54 weatherproof rating

•      Polycarbonate

•      Mounting brackets included

Protection:

•      Low voltage control and input circuitry

•      No hard wiring needed

Control & interface:

•      Indicator light for tank full

Inputs:

•      Digital 24Vac quick plug input for float switch

Outputs:

•      GPO for power supply to pump (6 amp max)

Included with panel:

•      10 Amp 3 pin 1.5m power supply lead

•      9006 float switch with 10m cable & quick plug connector

FUNCTION FEATURES

•      Controls an automatic pump, used to transfer stormwater from a collection pit to a storage tank

•      When the storage tank is full, the controller inhibits the pump and the ‘tank full’ light is illuminated
