40 L Pre-plumbed Stormwater Pit
Mini 3
$765.00
40 Litre Stormwater Pump and Pit
Mini 3 QSWP160-300 Stormwater Pump and Pit System – RVC155VF Sullage Pump
Polyethylene stormwater pit solution. Pre-plumbed pump for a plug and play solution. Ideally suited to low lying areas in backyards.
Applications:
- Pumping stormwater
- Stormwater collection and discharge in low lying backyard areas
- Building sites and other temporary applications
Pump Specification and Options:

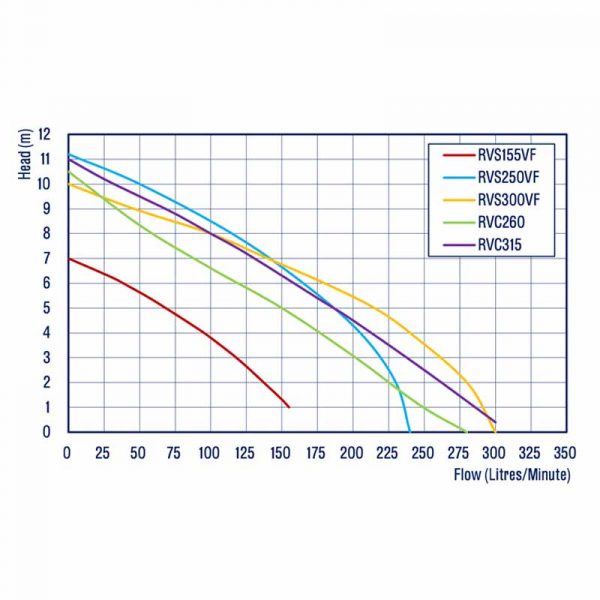

- QSWP160-300 – RVS155VF – Max Flow: 90 L/min, Max head: 4.0m
- QSWP230-300 – RVS250VF – Max Flow: 132 L/min, Max head: 6.0m

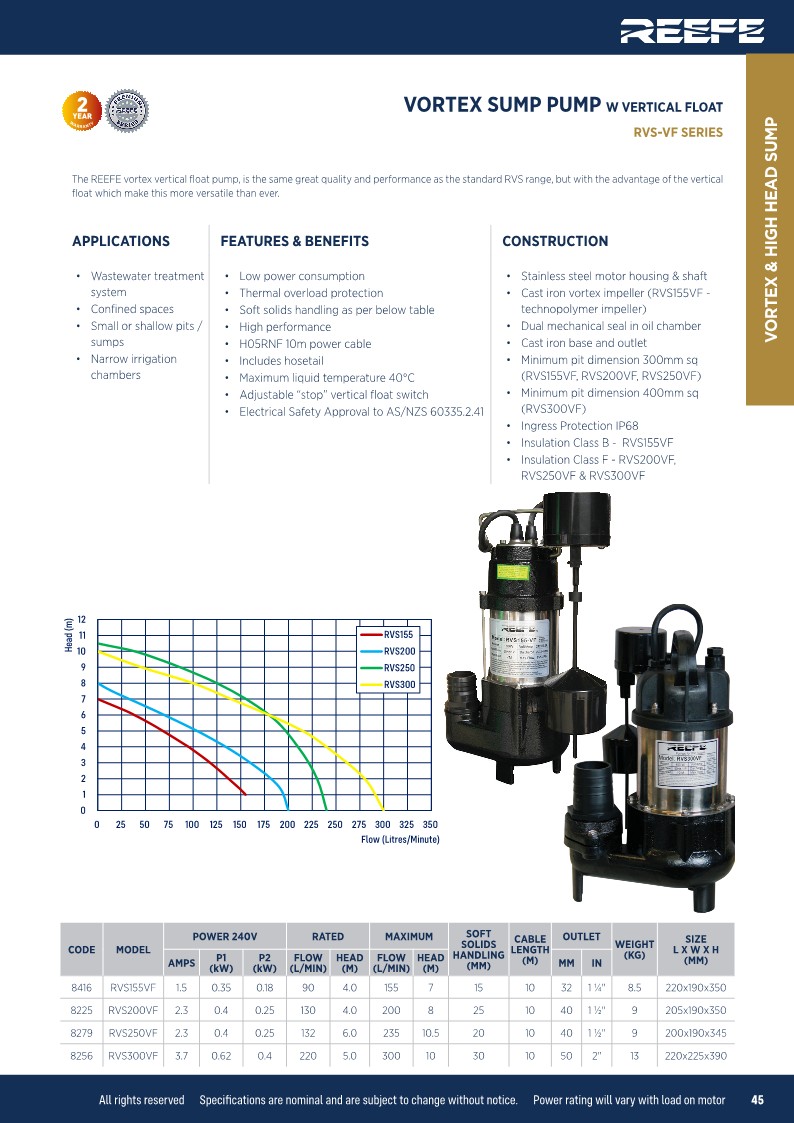

See Pump Brochure for pump specifications.
Please see more product information below
CONTACT US FOR MORE DETAILS

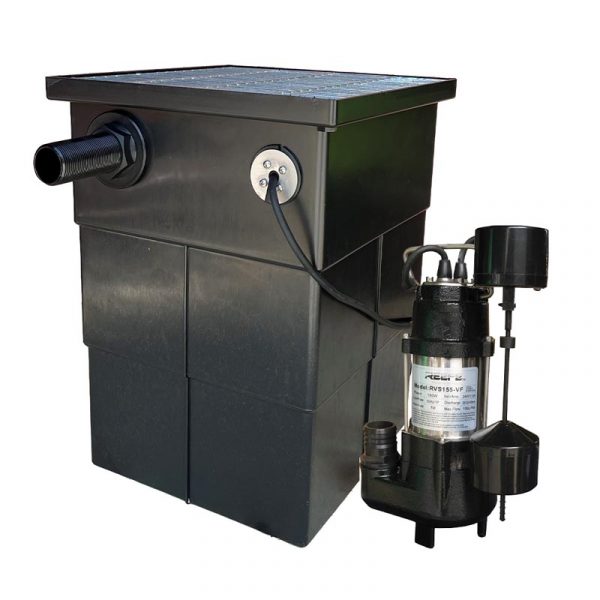

Stormwater Pit – Pre-plumbed
The stormwater Pump and Pit is a plug and play stormwater solution ideal for domestic and residential applications.
Features and Benefits:
- Compact design for easy installation
- Preassembled – ready to install
- Can handle up to 40°C
- Up to 30mm solids handling (Refer to pump model details on specific sizing)
- Not suitable for raw sewage
Construction:

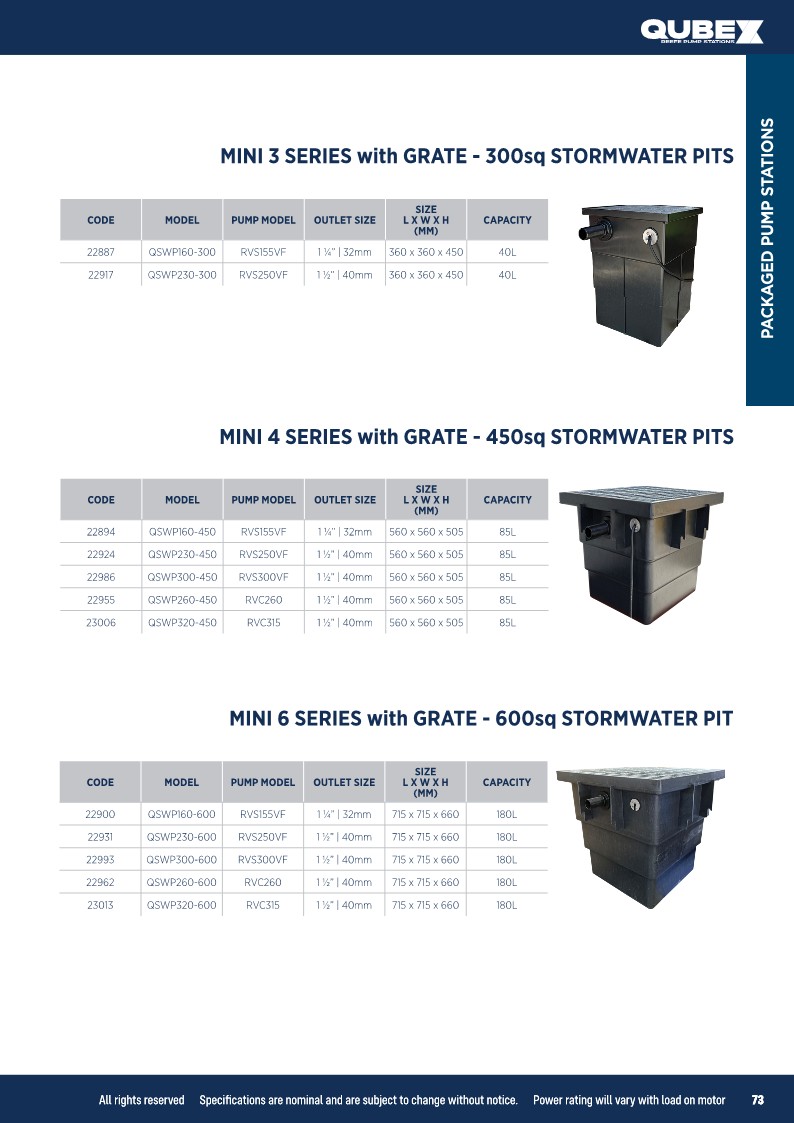

300 Pit = 40L
450 Pit = 85L
600 Pit = 180L
Class A Galvanised steel grate
Inlet to be installed on site by Installer
1 1/2” | 40mm MBSP outlet excluding RVS155VF Pump Pits.
RVS155VF: 1 1/4” | 32mm MBSP supplied with 32-40mm poly bush
Assembled using submersible pumps

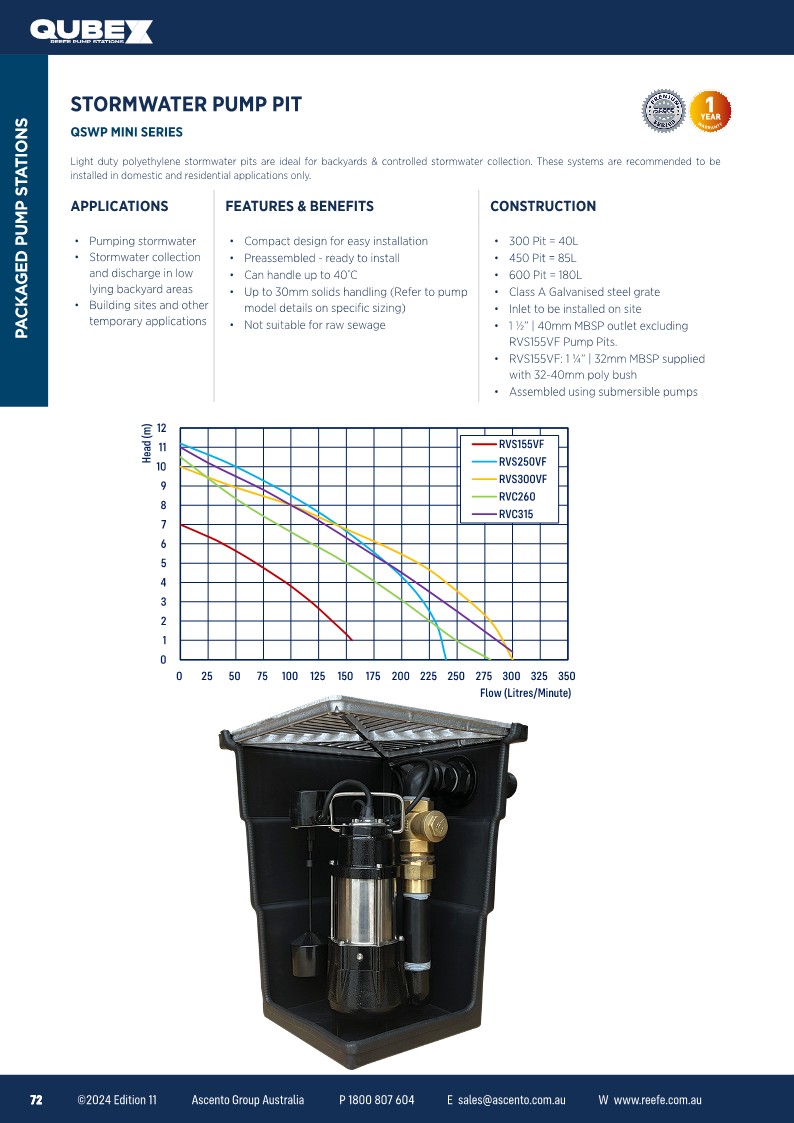

Instruction Manual Pump-Station-Instruction-Manual
If you require more information in regards to this product please call our office Contact Us
| Dimensions | 360 × 360 × 450 mm |
|---|
