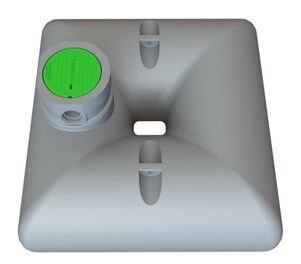

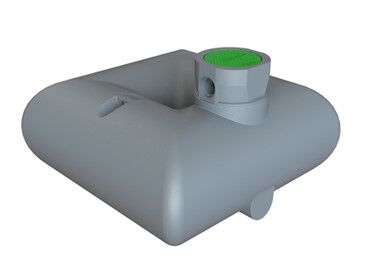

2000 Litre Underground Water Tank – Road Traffic Lid

Dimensions:

1930mm W x 1930mm L x 1120mm H

Weight:

105kg

What’s included:

• 2000 Litre Bagel tank

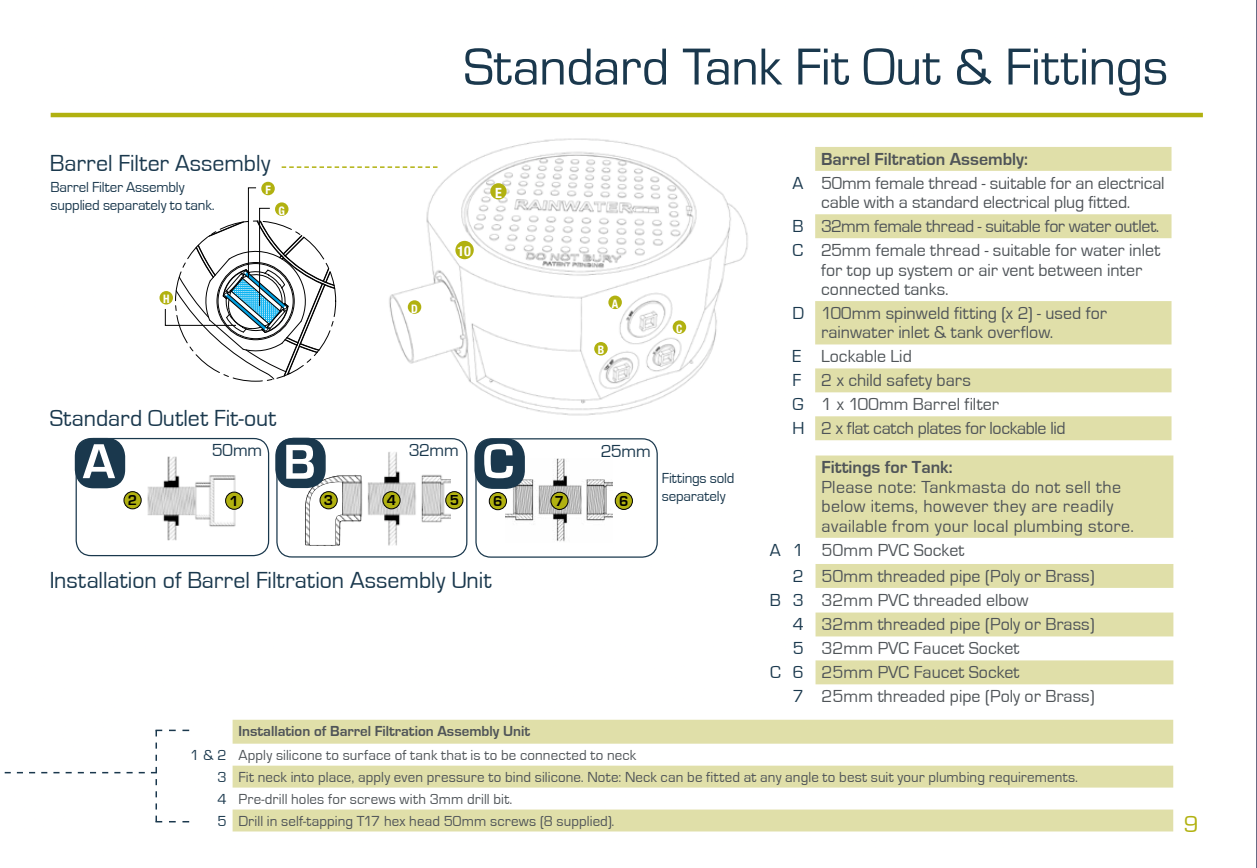

• Barrel Filter Heavy Duty- 100mm Inlet and 100mm Overflow with 25/32/50mm Outlet
• Heavy Duty Lockable lid – Road Traffic Lid
• Foam Filled Collar

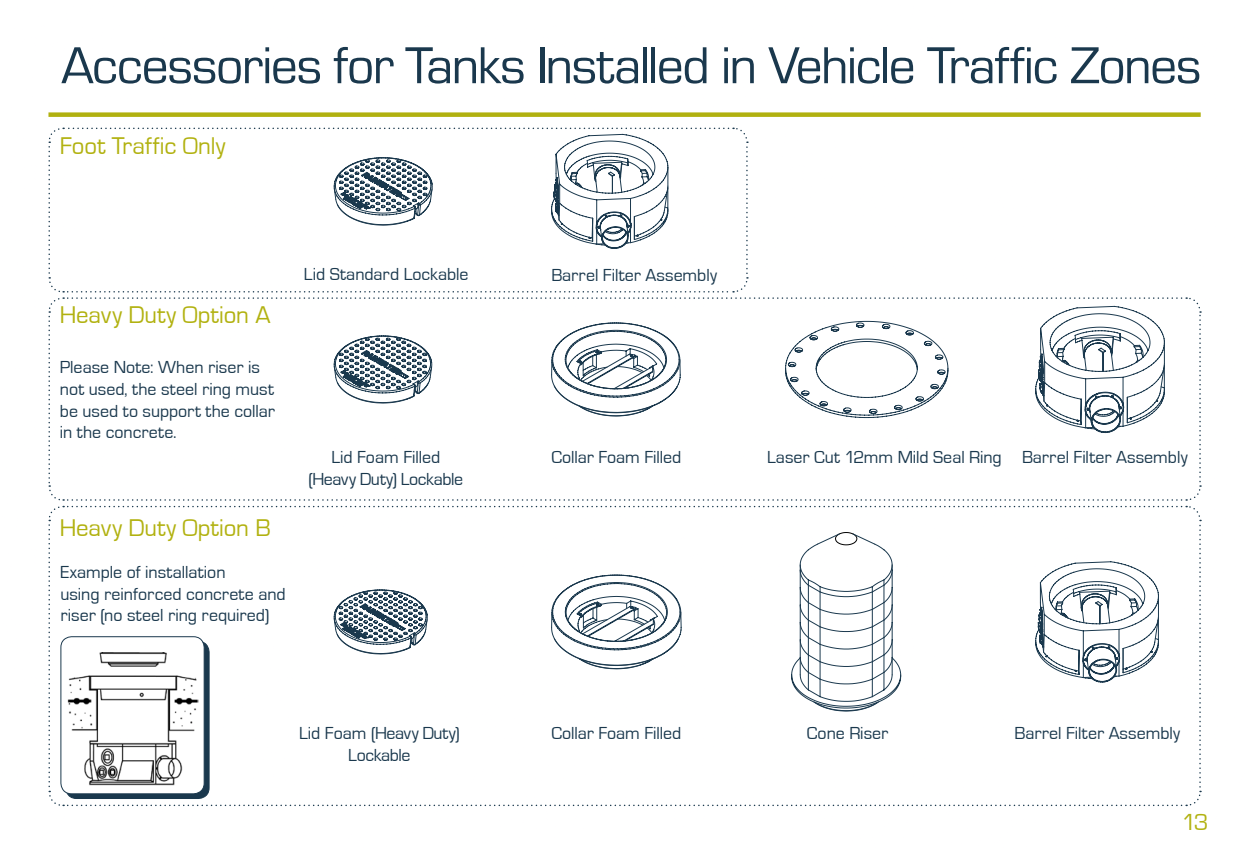

• OPTION A – 6mm zinc plated steel ring collar support for road traffic
• OPTION B – Cone Riser

If you require extra height – cone risers are available which can be cut to height.

BROCHURES:

Please see installation Manual for 2000 L 2000L-Underground-Installation-Instructions

Please see full installation manual Toroid Full Installation Manual

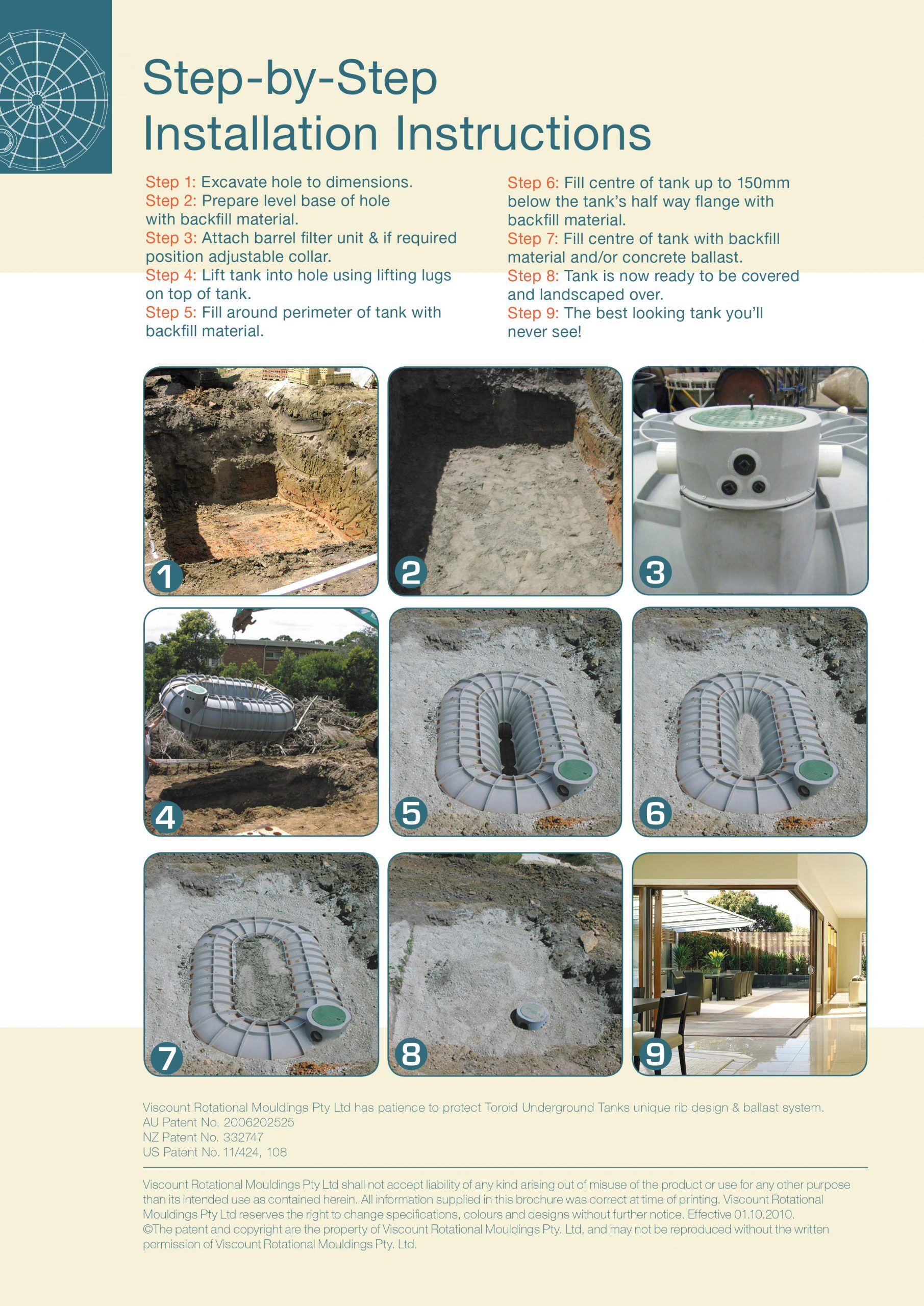

Please see easy installation instruction Toroid installation 1 page

The 2000 litre underground water tank is a perfect solution when space is limited.   Underground water tanks are designed to be installed underground in areas such as the garage, under the pergola, backyards or other locations suitable for installation.  Being unobtrusive and out of sight, underground tanks are and ideal solution for water storage.

Underground water tanks are designed with strength and longevity as their main purpose. The internal pressure of land fill and the descending pressure of concrete exerts some amount of pressure on the underground tank.

Being Australian made and designed for Australian conditions, they come with a 10 year manufacturer’s warranty and satisfy the following Australian Standards:

• AS/NZ 4766 and AS1170 – Design Structures
• AS1597 – Vertical Load
• AS 4020:2002 – Drinking Water

Combine your underground water tank with a submersible water pump to service bathrooms, gardens and other water needs.

On-site Detention

If you require detention fittings on your underground water tank we arrange additional fittings to satisfy.  We encourage you to send us your plans so we can price a solution. Contact us

Benefits:

• Super strong construction
• Low profile means minimum excavation
• Installation instructions link to soil types as stated in AS2870
• Does not exceed Workcover’s 1.5 metre guidelines for working at depth
• Allows a shallow slit trench, which minimises need for heavy equipment
• Shallow excavations minimises the chances of hitting rock
• Excavating only top soil minimises the need to remove soil from site.

Delivery:

Tanks are delivered to front of site.  Customers to provide lifting equipment on the day of delivery or enough strong adults to hand off-load ie 4 or 5.

To know more about 2000 litre underground water tank, get in connect with Get Tanked Water Tanks Contact Us
