2000 Underground Tank – Includes Road Traffic Lid and Delivery Metro

2000UGRT TM SA

$2,995.00

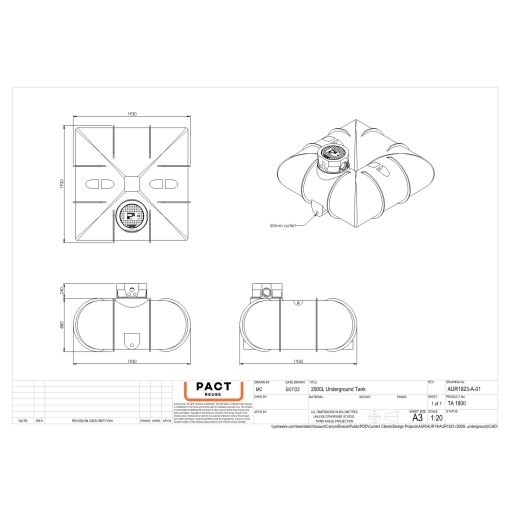

2,000 Litre Underground Water Tank – Road Traffic Lid

Length: 1930mm

Width: 1930mm

Height: 1120mm

What’s included:

– 2000 tank – 100mm inlet and overflow – 50mm outlet

– Barrel filter – heavy duty

– Heavy duty lockable lid – Rod Traffic

– 6mm zinc plated steel ring collar support for road traffic

Cone Risers – are available If you require additional height or to adjust the height of the lid to make installation easier. Please select this option in the drop down.

Tanks are delivered to front of site only – customer responsibility to have lifting equipment on hand or enough strong adults to hand off-load ie 3 or 4.

BROCHURES:

Please see full installation manual Toroid Full Installation Manual

Please see easy installation instruction Toroid installation 1 page

Please see lid installation lid_installation_traffic_zones

Please see more Information below:

CONTACT US FOR MORE DETAILS

SKU: 2000UGRT SA Categories: SOUTH AUSTRALIA Tank Range, Underground / Underdeck Water Tanks SA, Underground Tanks SA Tags: 2000 Litre Underground Tank, 2000 Underground tank, 2000 Underground Tank Adelaide, Underground Tank Brand: IPA MOULDING

Description
Additional information

2000L Underground Water Tank

Underground water tanks are designed for strength – to withstand the inward pressure from the soil and for it being out of sight yet fully functional water storage solution.

Some benefits of underground tanks:

Super strong construction
Low profile means minimum excavation
No necessity to use adjustable risers
Ingenious stainless steel self-cleaning 100mm in-line filter
Child safety bars incorporated into inlet
Lockable lid
Flat based sump for pump
Designed to fit into a 100mm concrete slab
Vehicle bearing due to unique central column design
Installation instructions link to soil types as stated in AS2870
Does not exceed Workcover’s 1.5 metre guidelines for working at depth
Allows a shallow slit trench, which minimises need for heavy equipment
Shallow excavations minimises the chances of hitting rock
Excavating only top soil minimises the need to remove soil from site.

Australian Standards Compliancy

ASNZS 4677 (int) – structure
AS1170.0 Design Structures
AS1597 Vertical Load
AS4020:2002 Drinking Water
AS2070 Parts 1 & 8

DELIVERY OF UNDERGROUND WATER TANKS

Delivery is to front of site. It is customer responsibility to provide lifting equipment on day of delivery or enough strong adults to hand offload ie 4-5 adults.
